Coleman CT200U 196cc 6.5HP Mini Bike Rear Rack Kit - Heavy Duty Rear Axle Assembly with Support Holder | Perfect for Cargo Hauling, Camping & Off-Road Adventures

DESCRIPTION:Condition: High Quality Solid Black Metal ConstructionColor: As Picture ShownEasy to install.Rear Rack Size:Comes with Mounting Bolts and Nuts (NOTE: 4 bolts & 4 nuts will be inside a zip sealed plastic bag that's taped onto the inside of the shipping box. Do NOT discard!)Rack Width: 15"Rack Depth: 12"Mounting Bracket bolt holes approx. 2" apart center-to-center4 Lashing posts approx. 1.4" long, with flanged ends, on bottom of rackRear Rack Support bolt holes approx. 15" apartSupport Holder Size:Rack Support Bar Overall Length: 15.25"Rack Support Bar Diameter: 0.875"Mounting bolt holes approx. 14.125" apart center-to-centerAxle Bolt Size:Length: 321mm not include the head nutTotal length : 332mm include the head nutM14 14MM Thread area ODThread pitch: 1.50Package Included(As picture showed):1 x Rear Rack with Bolts and Nuts2 x Rear Rack Support Holders1 x Axle Bolt

Rear Rack for the Coleman CT200U mini bike Rear Rack Holder Set CT200U mini bike

Rear Rack Size Rack Width 15" Rack Depth 12"

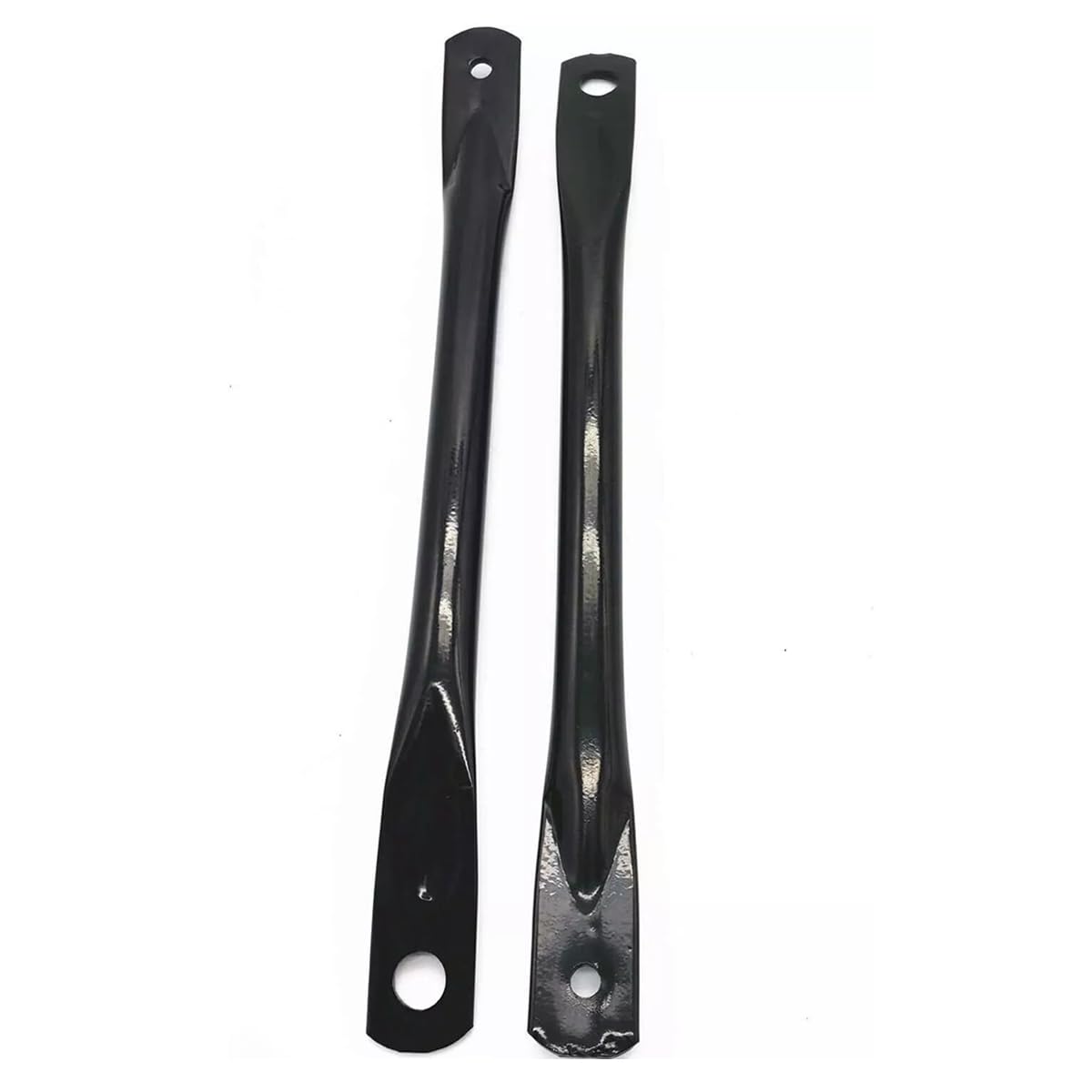

Support Holder Size Rack Support Bar Overall Length 15.25" Rack Support Bar Diameter 0.875"

Axle Bolt 14mm * 321mm for Coleman Mini Bike Rear Axle
